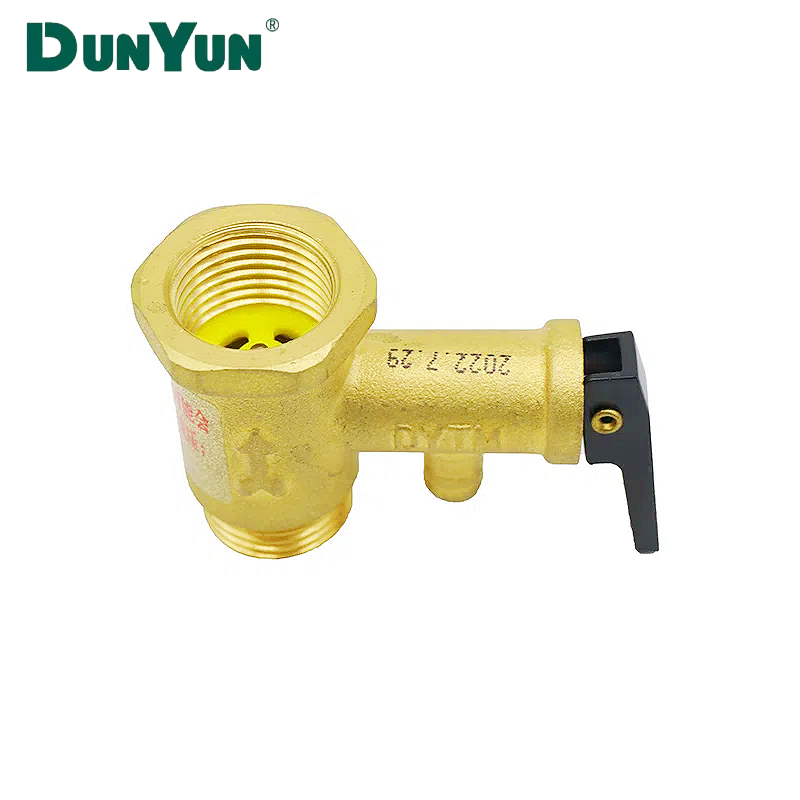

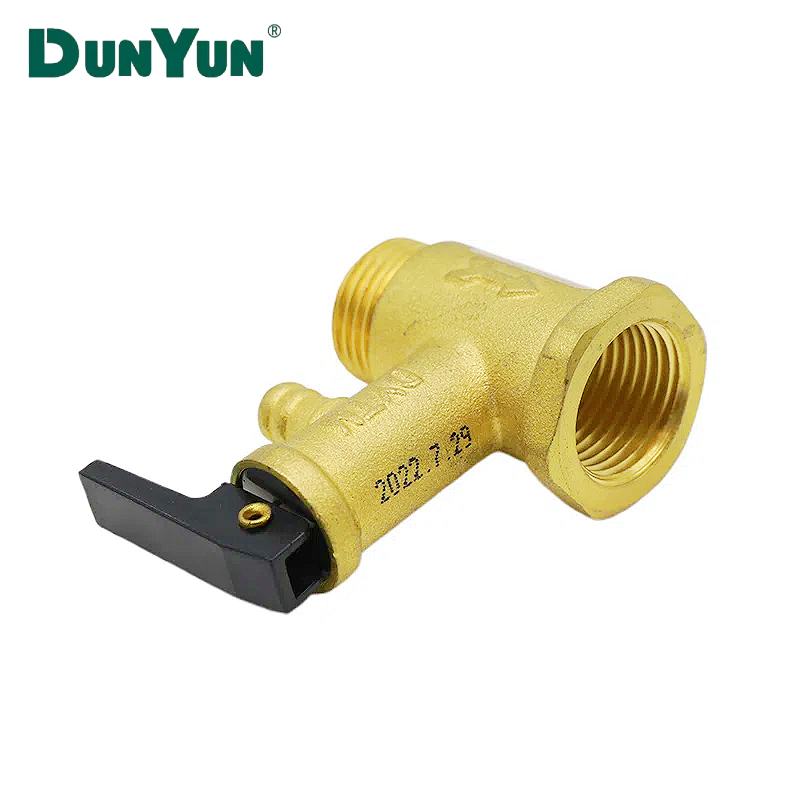

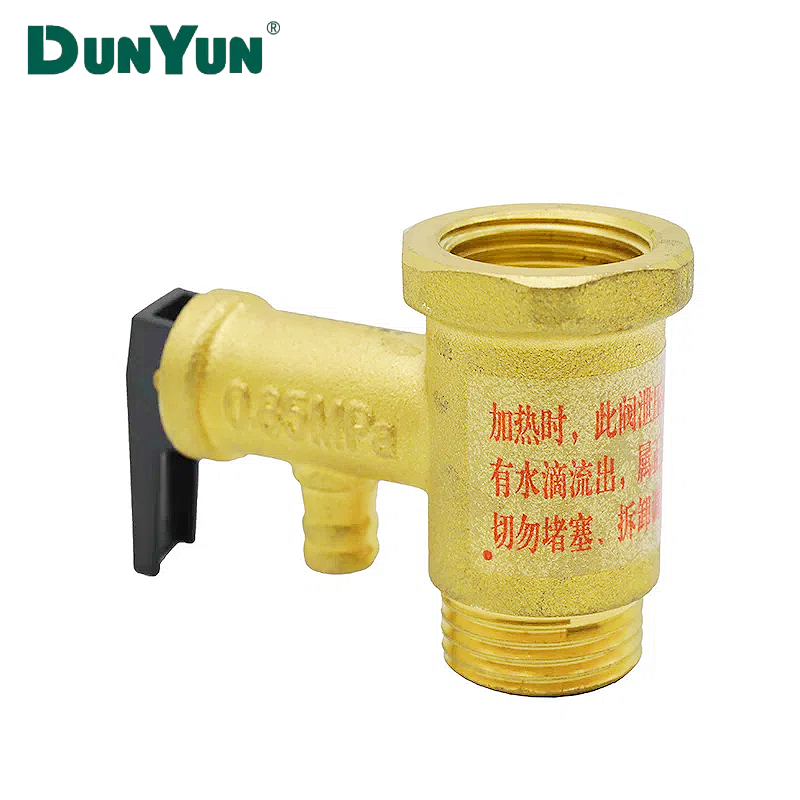

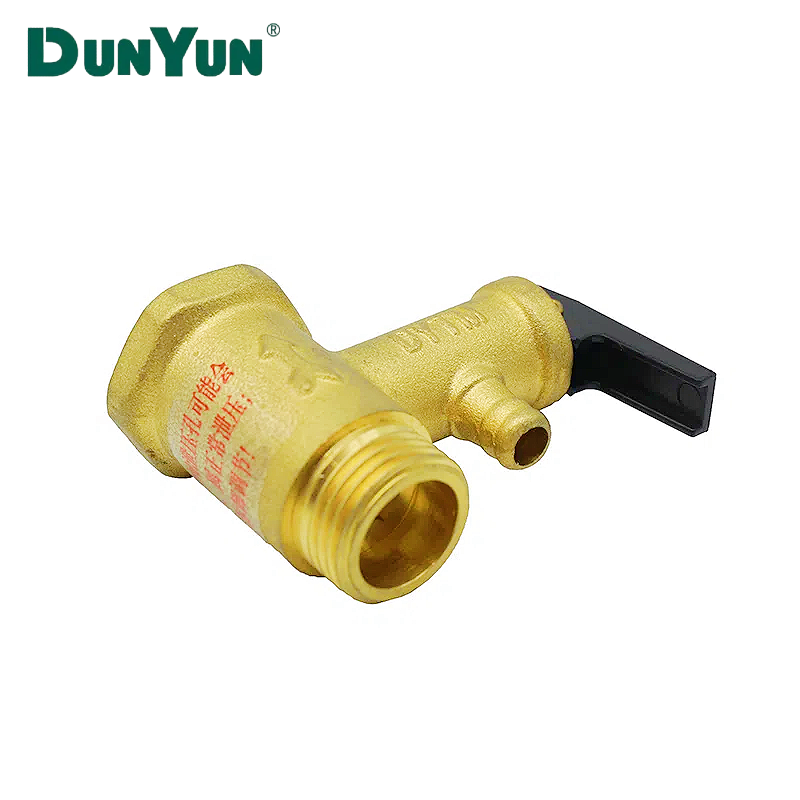

Water heater safety valve: the core barrier that safeguards the safety of the hot water system
As an essential safety accessory for hot water equipment such as electric water heaters and air source water heaters, water heater safety valves (also known as pressure relief valves or pressure reducing valves) are the "invisible guardians" that ensure stable operation of the equipment and avoid safety risks. It integrates multiple protective functions, and through precise pressure control and fluid guidance design, it eliminates hidden dangers such as inner tank overpressure explosion, water flow backflow, and heating pipe dry burning from the source, building the first line of safety defense for home and commercial hot water systems.
Core function: Multiple protection, secure without dead corners
1. Automatic overpressure relief to eliminate the risk of explosion
During the heating process of a water heater, the expansion of water can cause a sudden increase in the pressure inside the tank. When the pressure exceeds the set safety threshold (usually 0.7-0.9MPa, can be adapted to specifications as needed), the internal spring mechanism of the safety valve will automatically trigger, and the valve core will open and quickly release excess pressure and a small amount of hot water through the drainage hole; When the pressure drops to the safe range, the spring returns and drives the valve core to close, stopping the pressure relief. This mechanism is like a pressure relief valve in a pressure cooker, fundamentally preventing the inner tank from bursting due to overpressure and safeguarding personal and property safety.
2. Unidirectional check to prevent backflow and protect internal components
Built in check valve core and regulating spring component can effectively block cold water backflow. When the water supply pressure fluctuates, water stops, or pipeline maintenance occurs, the stored water in the inner tank can be firmly locked to prevent cold water from impacting the heating tube and causing damage. At the same time, it avoids the heating tube from drying out due to water shortage in the inner tank, significantly extending the service life of the heating tube and the inner tank and reducing the probability of equipment failure.
3. Convenient drainage and cleaning, easier maintenance
Equipped with dedicated drainage ears and a manual operating mechanism, pressure relief tests can be conducted by manually lifting the handle to check if the valve core is blocked by scale; When the inner liner needs to be cleaned of scale, this structure can also be used to quickly drain the accumulated water inside, simplify the maintenance process, and ensure that the valve remains sensitive for a long time.
Hot Tags: water heater safety valve, China water heater safety valve manufacturers, suppliers, factory
